3.5MM SINGLE MONO JACKS
JACKS AND PLUGS
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information

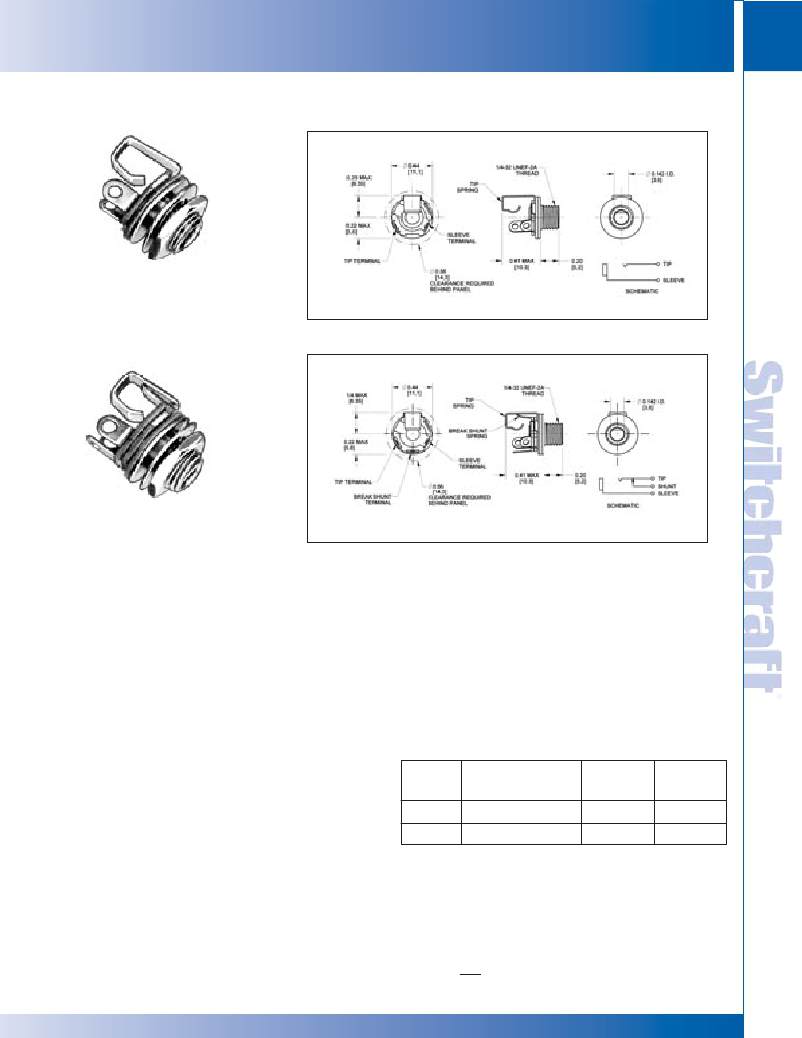

3.5 mm SINGLE MONO JACKS
35PM1
35PM2A
119
FEATURES
? 2-conductor phone jacks similar to Littel-Jax ?
phone jacks, but smaller.
? For connecting in limited space
? Mate with 3.5 mm phone plugs
? Notched insulators interlock internal parts
? Mounting hole: .250" diameter in panels up to .125" thick
(mounting hardware supplied)
? For insulated mount, order two washers separately,
MATERIAL
Mounting Bushing: Nickel-plated copper alloy.
Insulating Spacers: Rigid plastic.
Springs: Copper alloy.
Sleeve Terminal: Tin-plated copper alloy.
Hardware: Supplied with one, Number P11501
nickel-plated brass locknut, and one, Number S17901
nickel-plated steel flat washer.
Number S1564 (swedged fiber washer .312" diameter
mounting hole) and number S2207 (flat phenolic washer)
PART
JACK
TYPICAL
MATING
SPECIFICATIONS
MECHANICAL
Life: 5,000 insertion/withdrawal cycles, minimum
NUMBER
35PM1
35PM2A
DESCRIPTION
Open circuit
Shunted (closed circuit)
SCHEMATIC 1
I
III
PLUG
750
750
ELECTRICAL
Contact Resistance: .075 ohms maximum
Insulation Resistance: 5,000 M ? minimum
Dielectric Withstanding Voltage: 250V AC maximum
Contact Rating: .25A, 48V DC
1. See jack schematics on pages 79 and 80.
ORDERING INFORMATION
1. Order by part number.
2. Contact Switchcraft for more information.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
